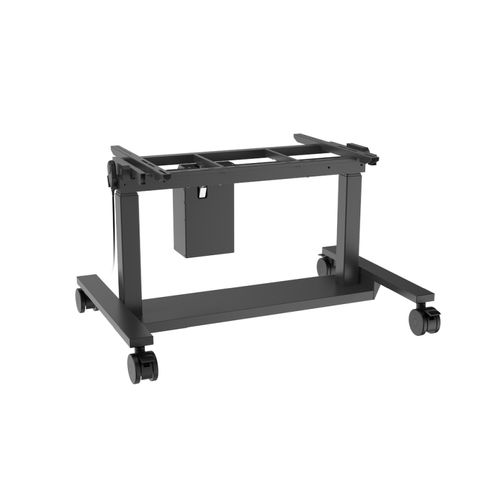

Mobile Trolley Maxhub Motorised Height & Tilt AdjustableMaxhub Motorised AV Trolley for Interactive Displays.Features:
Up/Down plus flip angle to 90 degrees for tabletop use.
The EST11 has one of the largest ranges of movement currently available in motorised trolleys.
It is robust and yet elegant in its design and allows for both up/down movement as well as the ability to flip to 90 degrees for tabletop use of the panel.
EST11 is easy to assemble and comes packaged with everything you will need.
The best part is that you can raise and lower the trolley all from an application on the interactive display itself.
Specifications:
Dimension Assembled: 1178(L) x 741(W) x (1056 to 1706)(H)mm.
Package Dimension: 1305(L) x 825(W) x 205(H)mm.
Power Requirements: AC 100-240V, 50/60hz.
Power Consumption(Typical): 135W.
Power Consumption (Max): 300W.
Motor travel speed: 35mm/s.
Lifting Distance: 650mm.
Flip Angle: 90 degree +- 1 degree.
Gross Weight: 57kg.
Net Weight: 46kg.
Max Load: 100kg.
Max LRecommend Panel Size: Up to 86 inch only.
Control Mode: Control Panel /Control Pad / Software.
Castors: 4 Inches Mute.
Support Wall-hanging: Standard Dedicated Wall Mount.
Package Includes: AC Power Cable x 1; USB Adapter Cable x 1; Hand Controller x 1; Holder For Hand Controller x 1; Screw Accessory Package x 1; Installation Manual x 1; User Guide x 1.
OEM: EST11.
Specifications
General
Manufacturer
Maxhub
Brand
Maxhub
MPN
EST11
All Supplier Codes
MHEST11
Barcodes
6927433604039
GTIN
6927433604039
Information on technical characteristics, the delivery set, the country of manufacture and
the appearance
of the goods is for reference only and is based on the latest information available at the
time of publication.
